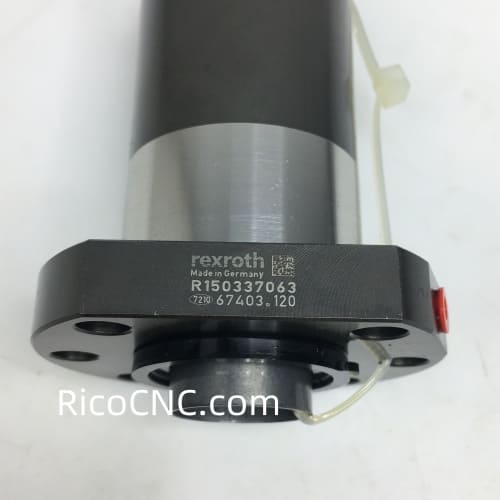

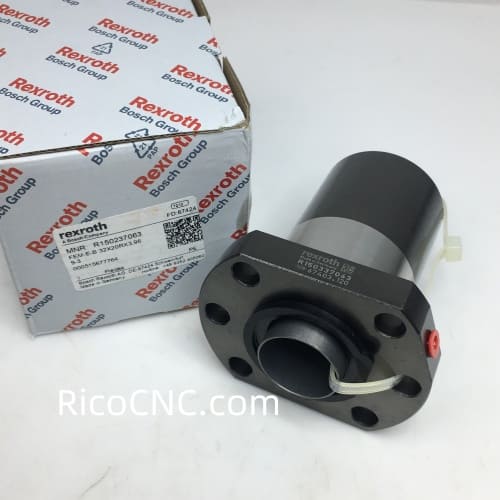

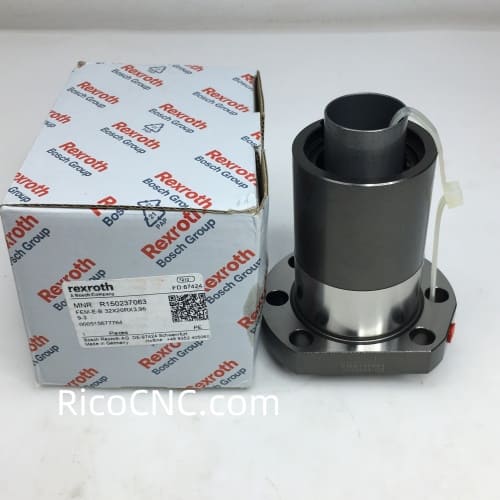

R150337063 R150237063 Rexroth linear ball screw nut

R150337063 R150237063 BALL NUT FEM-E-B 32X20RX3,969-3, Single nut with flange FEM-E-B, size 32 x 20R x 3.969 - 3. Rexroth linear ball screw nut R150337063 R 150337063 for CNC machine offers long life, high precision, and versatile applications.

Specification of R150337063 R150237063 Rexroth linear ball screw nut:

Single nut with flange FEM-E-B with standard seal and standard axial clearance

Nominal size [mm]: 32 x 20R x 3,969 - 3

Series: Standard series

Dynamic load capacity C [N]: 23600.0

Nominal diameter d0 = 32

Lead P = 20 (right)

Ball diameter Dw = 3.969

Number of ball track turns i = 3

Mounting dimensions similar to DIN 69051, Part 5 flange type B.

With seals

With left-hand version in some cases

Preload class: C0, C00, C1, C2, C3
