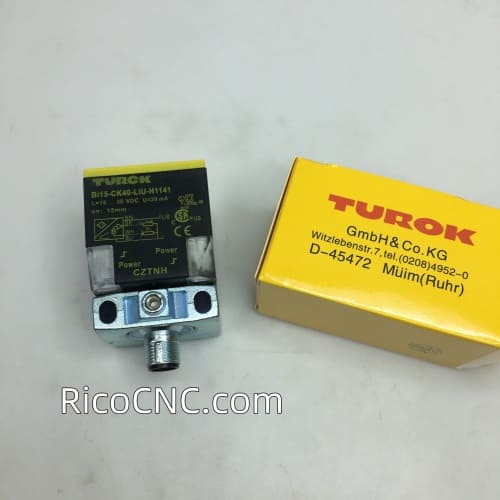

Bi15-CK40-LiU-H1141 TURCK Inductive Sensor – With Analog Output

Turck BI15-CK40-LIU-H1141 W/BS2.1 ProXimity Sensor, 15mm Sensing Distance, Analog Output, DC, Flush Mount.

Type: BI15-CK40-LIU-H1141

ID: 1537800

General data

Measuring range: 4…11  mm

Mounting conditions: Flush

Secured operating distance: ≤ (0.81 × Sn) mm

Correction factors: St37 = 1; Al = 0.3; stainless steel = 0.7;

Ms = 0.4

Repeatability: ≤ 1 % of measuring range |A - B|

               0.5 %, after warm-up 0.5 h

Reproducibility: ≤ 70  µm

                 ≤ 35 µm, after a warm-up time of 0.5 h

Linearity deviation: ≤ 3 %

Temperature drift: ≤ ± 0.06 %/K

Electrical data

Operating voltage UB: 15…30  VDC

Ripple Uss: ≤ 10 % UBmax

No-load current: ≤ 8  mA

Isolation test voltage: 0.5 kV

Short-circuit protection: yes

Wire break/reverse polarity protection: no/Complete

Output function: 4-wire, Analog output

Voltage output: 0…10  V

Current output: 0…20  mA

Load resistance voltage output: ≥ 4.7 kΩ

Load resistance current output: ≤ 0.4 kΩ

Measuring sequence frequency: 110 Hz
