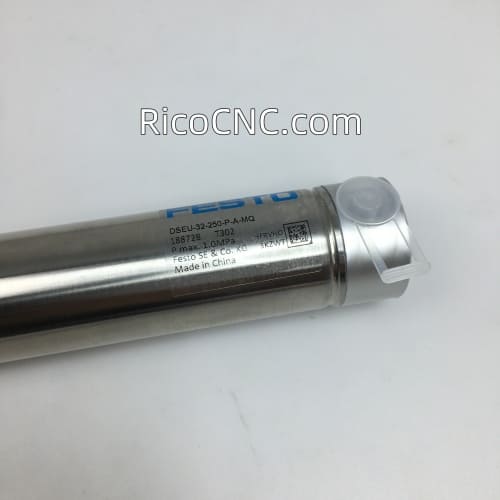

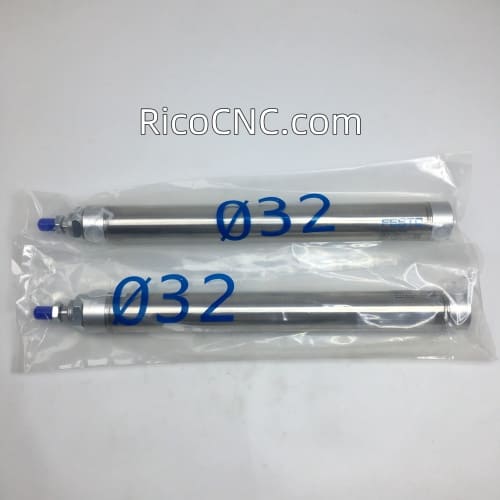

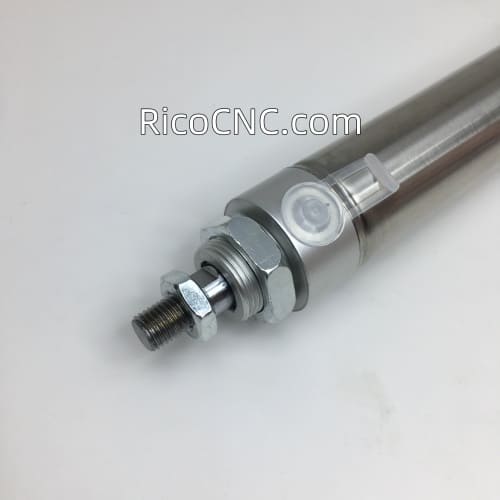

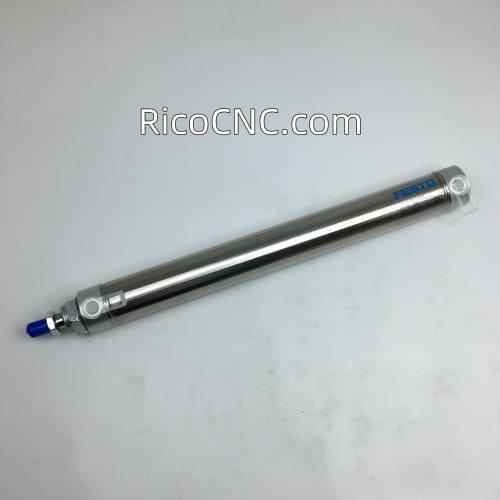

DSEU-32-250-P-A-MQ Festo Round Cylinder DSEU series

DSEU-32-250-P-A-MQ Festo Round Cylinder DSEU series, End cap, with air connection perpendicular to cylinder axis. double-acting, 1.5 ... 10 bar Operating pressure.

Specification of DSEU-32-250-P-A-MQ Festo Round Cylinder DSEU series:

Stroke: 250 mm

Piston diameter: 32 mm

Cushioning P: Flexible cushioning rings/plates at both ends

Assembly position: Any

Design structure: Piston/ Piston rod/ Cylinder barrel

Position detection: For proximity sensor

Variants: lateral supply port

Operating pressure: 1.5 ... 10 bar

Mode of operation: double-acting

Operating medium: Dried compressed air, lubricated or unlubricated

Corrosion resistance classification CRC: 1

Ambient temperature: 0 ... 80 °C

Theoretical force at 6 bar, return stroke: 415 N

Theoretical force at 6 bar, advance stroke: 483 N

Moving mass with 0 mm stroke: 79.1 g

Additional weight per 10 mm stroke: 15.5 g

Basic weight for 0 mm stroke: 216.5 g

Mounting type: with accessories

Pneumatic connection: G1/8
