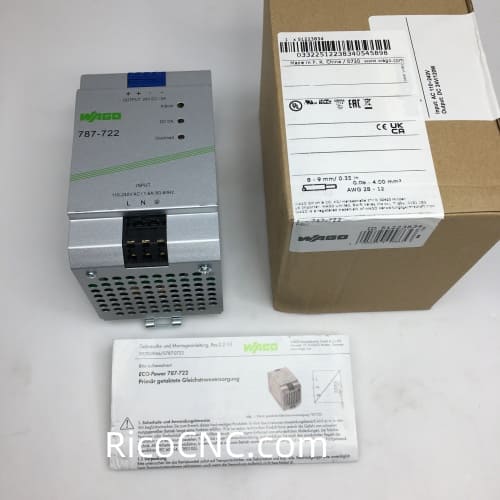

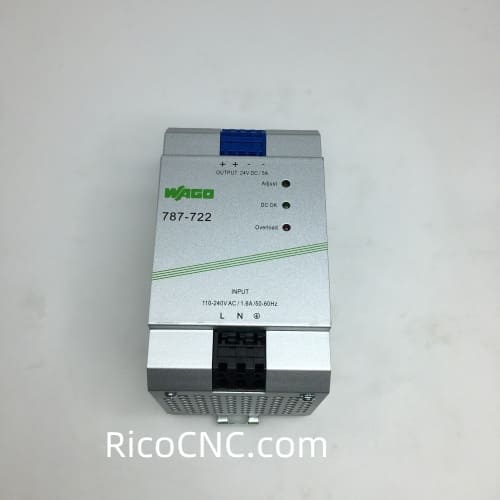

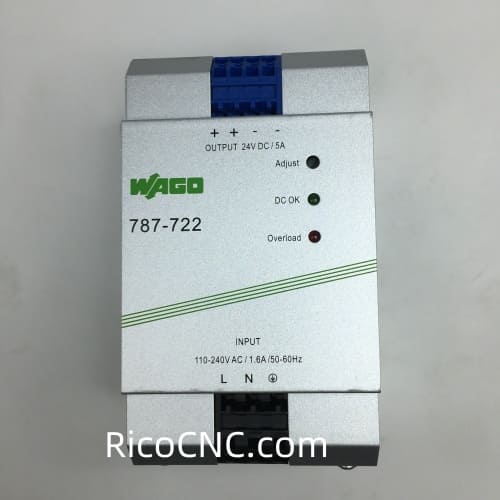

787-722 WAGO Power Supplies

787-722 WAGO Power Supplies, Eco; 1-phase; 24 VDC output voltage; 5 A output current; DCOK LED; 4,00 mm². open circuit and short-circuit protected; adjustable output voltage; LED status indication.

Features of 787-722 WAGO Power Supplies:

Switched-mode power supply

Natural convection cooling when horizontally mounted

Encapsulated for use in control cabinets

Suitable for both parallel and series operation

Electrically isolated output voltage (SELV) per UL 60950-1; PELV per EN 60204

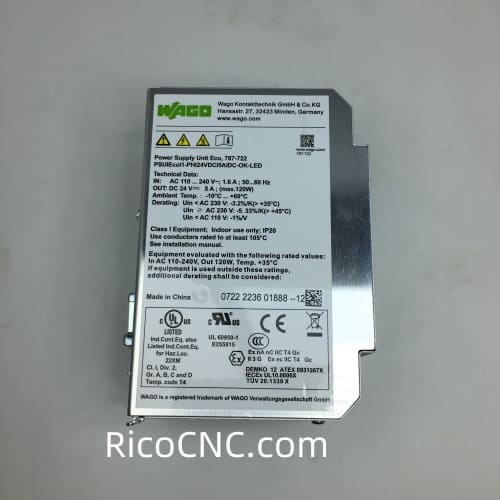

Specification of 787-722 WAGO Power Supplies:

Phases: 1

Nominal input voltage Ui nom: 1 x 110 … 240 VAC

Input voltage range: 1 x 100 … 264 VAC

Nominal mains frequency range: 47 … 63 Hz; 0 Hz

Input current Ii: ≤ 0.7 A (230 VAC); ≤ 1.6 A (115 VAC)

Power factor correction (PFC) Active

Nominal output voltage Uo nom: 24 VDC (SELV)

Default setting: 24 VDC

Nominal output current Io nom: 5 A (24 VDC)

Nominal output power: 120W

Deviation: ≤ 1 %

Signaling: 1 x DC OK LED (green)/ 1 x Overload LED (red)

Power loss Pl: ≤ 19.5 W (230 VAC; nominal load)

Power loss (max.) Pl (max.): 23.5 W (110 VAC / 24 VDC; 5.5 A)

Internal fuse: F 3.15 A / 250 VAC

Backup fuse (recommended): Circuit breaker: 10 A, 16 A; Tripping characteristic: B or C
