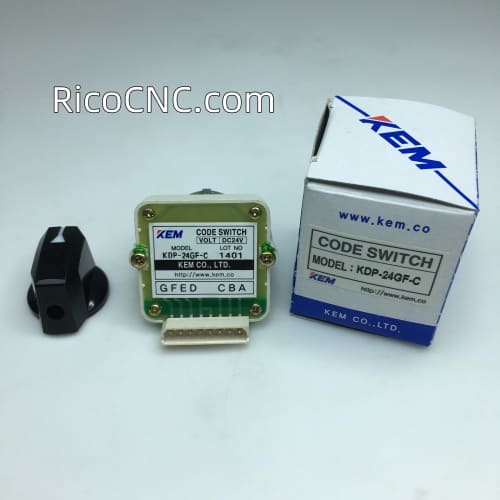

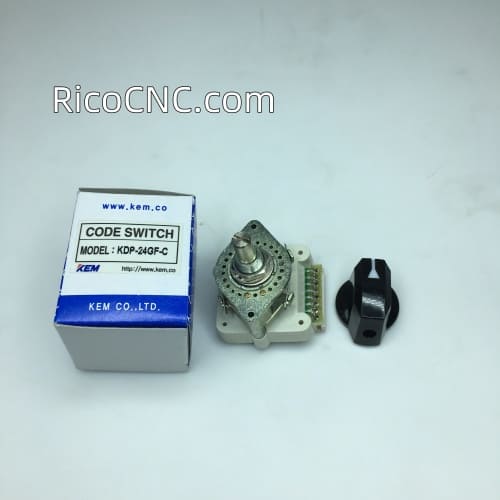

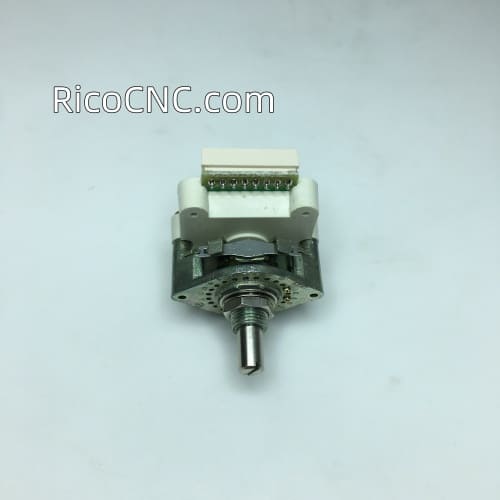

KDP-24GF-C KEM CODE SWITCH

KDP-24GF-C KEM CODE SWITCH, 15˚ / Real Gray Code / 8-pin Connector Type, Completely sealed, it has excellent oil and water resistance.

Completely sealed structure: Completely sealed, it has excellent oil and water resistance.

Micro wiring: Compared to multi-stage rotary switches that require complex wiring and code combinations, this switch simplifies wiring and allows connector connection through digital coding.

Specifications of KDP-24GF-C KEM CODE SWITCH

1. Operating temperature: -20℃~+70℃

2. Rotating torque: 0.1~0.2N·m(1~2kgf·cm)

3. Contact resistance: DC 5V 1A resistance 100mΩ or less

4. Insulation resistance:

   DC 250V / 1 minute / Terminal-Terminal / 500mΩ≤

   DC 500V / 1 minute / Terminal-Ground / 25V 0.1A

5. Rating:

    Resistive load

    AC 5V 0.5A 48V 0.05A

    DC 5V 0.25A 25V 0.05A

6. Lifespan: 70,000 times
