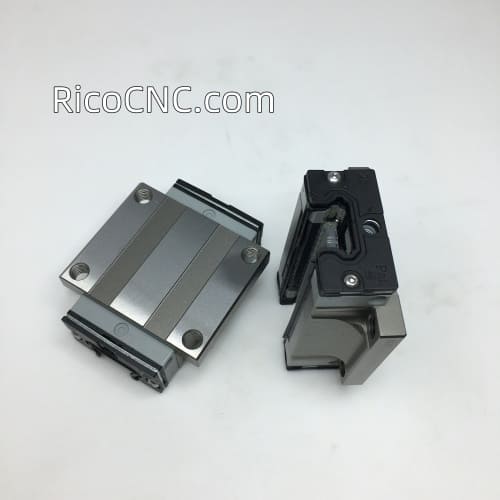

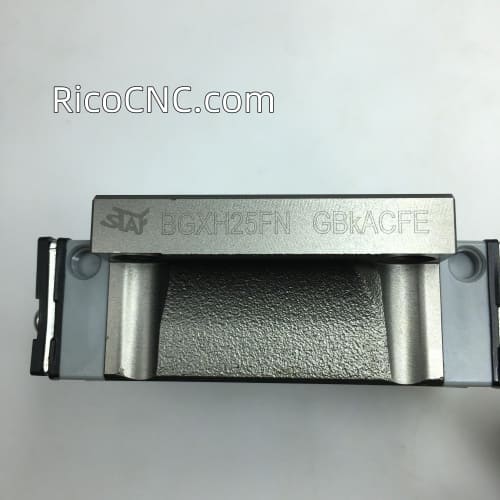

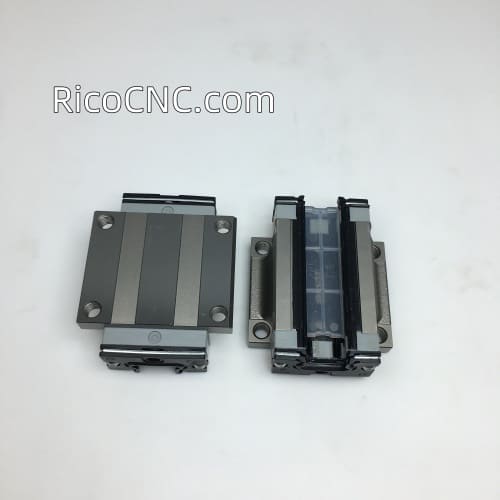

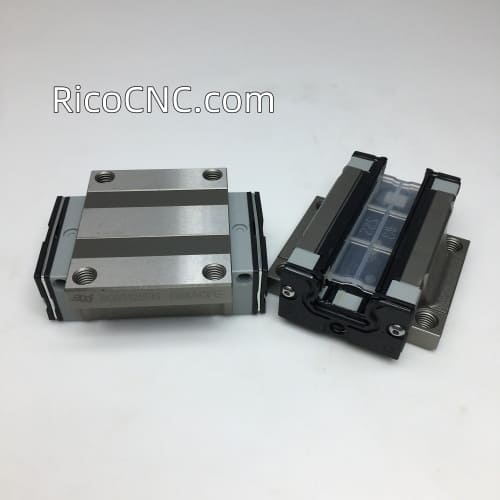

BGXH25FN Staf LINEAR GUIDEWAY BLOCK

BGXH25FN  1676 Mm Long Rails CNC Router Linear Rail Slider Carriage, linear guide bearing, standard, size 25, high assembly height, non-caged, with flange, rail must be purchased separately. The BGXS_FN non-caged type linear bearing, including BGXH25FN is compatible with IKO LWHT_B series.

The feature of BGXH25FN linear bearing block:

1.Quick light movements.

2.Lower friction

3.Bigger load ratings.

4.Higher stability.

Specification of BGXH25FN Staf LINEAR GUIDEWAY BLOCK:

Manufacturer: STAF

Type: Linear Guideway Block BGX

Model: BGX H25FN

Size: 25 mm

Block Type: Flanged block

Basic Load Ratings:

Dynamic C: 20.1 kN

Static C0: 41.1 kN

Dimensions

Total Height H: 36 mm

Block Width W: 70 mm

Block Length L: 79.2 mm

B: 57 mm

J: 45 mm
