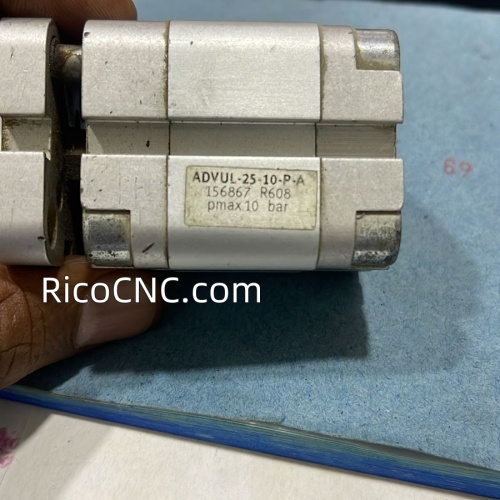

ADVUL-25-10-P-A Festo Compact cylinder

FESTO Compact cylinder ADVUL-25-10-P-A 156867, 25 mm Piston diameter, 295 N Advance/247 N Return Max Force, Double Acting Cylinder Action, Through Hole Mount.

Specification of ADVUL-25-10-P-A Festo Compact cylinder:

Piston diameter: 25 mm

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke: 295 N

Stroke: 10 mm

Cushioning: Elastic cushioning rings/plates at both ends

Position detection: Via proximity switch

Mounting position: optional

Design: Piston, Piston rod

Position detection: Via proximity switch

Variants: Piston rod at one end

Protection against torque/guide: Guide rod with yoke

Operating pressure: 0.1 MPa...1 MPa

1 bar...10 bar

Mode of operation: Double-acting

Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot medium: Lubricated operation possible (in which case lubricated operation will

always be required)

Corrosion resistance class CRC: 2 - Moderate corrosion stress

LABS (PWIS) conformity: VDMA24364-B1/B2-L

Impact energy in end positions: 0.1 J

Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke: 247 N

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke: 295 N
