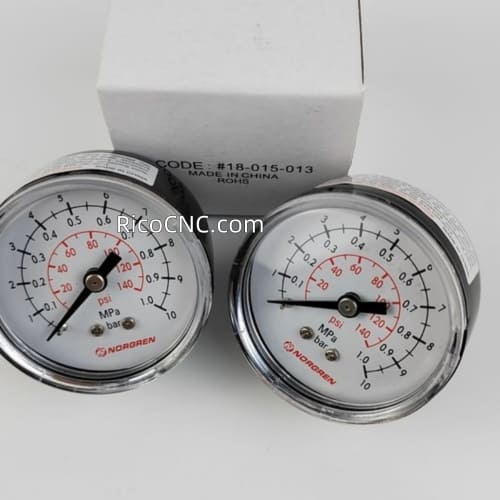

18-015-013 NORGREN AIR Pressure Gauge

Norgren 18-015-013 Air Pressure Gauge, 50mm, 0-10 bar, 3 Scales psi bar MPa, R 1/8, 18-015 Series.

Feature of 18-015-013 NORGREN AIR Pressure Gauge

Port size: Rc1/8, 1/8 and 1/4 PTF

Ideally suited for use in harsh environments

Vibration and pulsation resistant

Restricted orifice

Enclosure rating - IP65

Wide temperature range

Specification of 18-015-013 NORGREN AIR Pressure Gauge:

Brand: NORGREN

Range: 18-015

Manufacturer Part Number: 18-015-013

Number of Scales: 3

Type: principal Pressure Gauge

Operating Temperature: -20 ... 65 °C, -4 ... 149 °F

Operating Pressure: 0 ... 10 bar, 0 ... 145 psi

Port Size: R1/8

Maximum Inlet Pressure: 10 bar, 145 psi

Scale: 0 ... 10 bar, 0 ... 1 MPa, 0 ... 145 psi

Dimensions - Height: 50 mm

Dimensions - Length: 50 mm

Dimensions - Width: 50 mm
