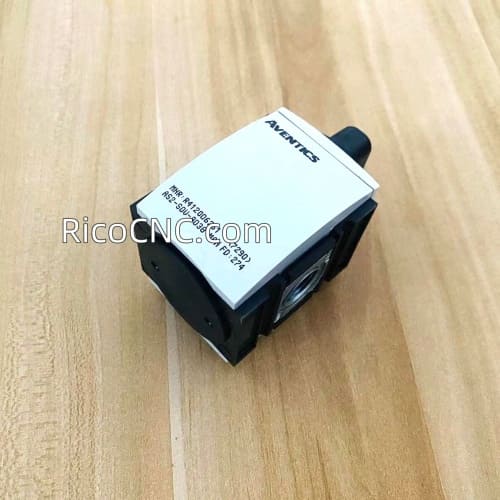

R412006261 AVENTICS 3/2-shut-off valve, mechanically operated Series AS2-BAV

R412006261 AVENTICS 3/2-shut-off valve, mechanically operated Series AS2-BAV, Working Pressure Max (bar)is 16, Working Pressure Min (bar)is 0, Connection input G 3/8, Connection exhaust G 1/4.

Specifications of R412006261 AVENTICS 3/2-shut-off valve, mechanically operated Series AS2-BAV:

Activation: Mechanical

Nominal flow Qn: 2000 l/min

Compressed air connection: G 3/8

Working pressure min.: 0 bar

Working pressure max: 16 bar

Actuating element: rotary switch

Sealing principle: soft seal

Type: Poppet valve

Parts: Shut-off valve

Lock type:lockable

Lock type: for padlocks

Can be assembled into blocks: Can be assembled into blocks

Medium: Compressed air, Neutral gases

Max. particle size: 25 µm

Compressed air connection, exhaust: G 1/4

Nominal flow Qn 1 to 2: 2000 l/min

Nominal flow Qn 2 to 3: 380 l/min

Housing material: Polyamide

Seal material: Acrylonitrile butadiene rubber

Material locking base: Polyoxymethylene

Material, front cover: Acrylonitrile butadiene styrene

Material threaded bushing: Die cast zinc
