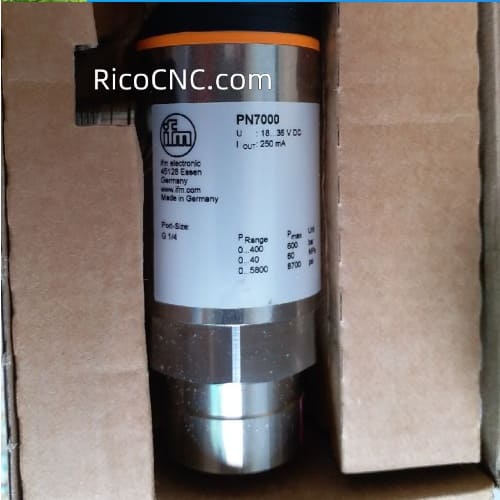

PN7000 IFM PN-400-SBR14-QFRKG/US/ /V Electronic Pressure Switch Sensor

PN7000 IFM PN-400-SBR14-QFRKG/US/ /V Electronic Pressure Switch Sensor, Electronic pressure sensor with display, 0-400 bar, 2 x NC/NO

programmable, DC PNP/NPN, Process connection: G 1/4 female,  Protection rating: IP67, M12 connector.

Feature of PN7000 IFM PN-400-SBR14-QFRKG/US/ /V Electronic Pressure Switch Sensor

Two programmable switching outputs

With long-term stability thanks to high overload protection

Lifespan of more than 100 million pressure cycles

Clearly visible numerical display

Country-specific pressure units selectable

Specification of PN7000 IFM PN-400-SBR14-QFRKG/US/ /V Electronic Pressure Switch Sensor

Number of inputs and outputs: Number of digital outputs: 2

Measuring range: 0...400 bar 0...5800 psi 0...40 MPa

Process connection: threaded connection G 1/4 Internal thread

System: gold-plated contacts

Application: for industrial applications

Media: liquids and gases

Conditionally suitable for: use in gases at pressures > 25 bar only on request

Operating voltage[V]: 18...36 DC; (to SELV/PELV)

Current consumption[mA]: < 35

Min. insulation resistance[MΩ]: 100; (500 V DC)

Protection class: III

Reverse polarity protection: yes

Overvoltage protection: yes; (< 40 V)

Power-on delay time[s]: 0.3

Integrated watchdog: yes

Number of inputs and outputs: Number of digital outputs: 2

Total number of outputs: 2

Output signal: switching signal; IO-Link; (configurable)

Electrical design: PNP/NPN

Number of digital outputs: 2

Output function: normally open / closed; (configurable)

Max. voltage drop switching output DC[V]: 2

Permanent current rating of switching output DC[mA]: 250

Switching frequency DC[Hz]: < 170

Short-circuit protection: yes

Type of short-circuit protection: yes (non-latching)
