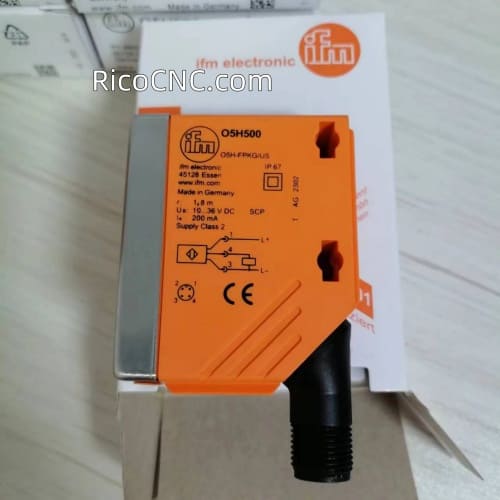

O5H500 IFM O5H-FPKG/US100 Photoelectric Sensors Diffuse reflection sensor

O5H500 IFM O5H-FPKG/US100 Photoelectric Sensors Diffuse reflection sensor with background suppression, it is Rectangular plastic with plug and socket. 10-36vdc,200mA, pulsed Short-circuit protection.

Features of O5H500 IFM O5H-FPKG/US100 Photoelectric Sensors Diffuse reflection sensor:

Extremely long measuring range

Precise geometric background suppression

Sensitivity adjustable via guide button

Rugged housing suitable for harsh industrial environments

Programmable light-on/dark-on modes

Specification of O5H500 IFM O5H-FPKG/US100 Photoelectric Sensors Diffuse reflection sensor:

Object white (90 % remission) 50...1800

Object grey (18 % remission) 50...900

Object black (6 % remission) 50...600

Light spot diameter [mm]: 50 ( Range 1000 mm )

Operating voltage [V]: 10...36 DC

Current rating [mA]: 200

Short-circuit protection: pulsed

Reverse polarity protection: yes

Overload protection: yes

Voltage drop [V]: < 2.5

Current consumption [mA]: 25

Switching frequency [Hz]: 1000

Type of light: Red light 624 nm

Operating temperature [°C]: -25...60

Protection: IP 67, II

EMC: EN 60947-5-2

Housing material housing: PA; bezel: high-grade stainless steel; operator interface: TPU

Material lens PMMA

Function display

Switching status LED: yellow

Connection: M12 connector
