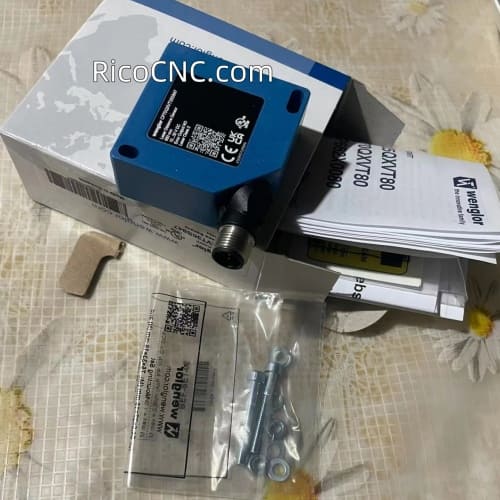

CP70QXVT35S847 Wenglor Laser Distance Sensor Triangulation

CP70QXVT35S847 Wenglor Laser Distance Sensor Triangulation，660mm range, 1% Switching Hysteresis, red laser light.

Features of CP70QXVT35S847 Wenglor Laser Distance Sensor Triangulation

Highly accurate switching distance

Minimal switching hysteresis

Switching point independent of material, color and brightness

Modification of standard product, view information document

Specification of

Range: 660 mm

Setting Range: 60 ... 660 mm *

Switching Hysteresis: 1 %

Light Source: Laser (red)

Wavelength: 655 nm

Service Life (T = +25 °C): 100,000 h

Laser Class (EN 60825-1): 2

Max. Ambient Light: 10,000 Lux

Supply Voltage: 10 ... 30 V DC

Current Consumption (Ub = 24 V): < 50 mA

Switching Frequency: 20 Hz

Response Time: 10 ms

On-/Off-Delay: 10 ms

Temperature Drift: < 50 µm/K

Setting Method: Teach-In

Housing Material: Plastic, ABS/ Plastic, PC
