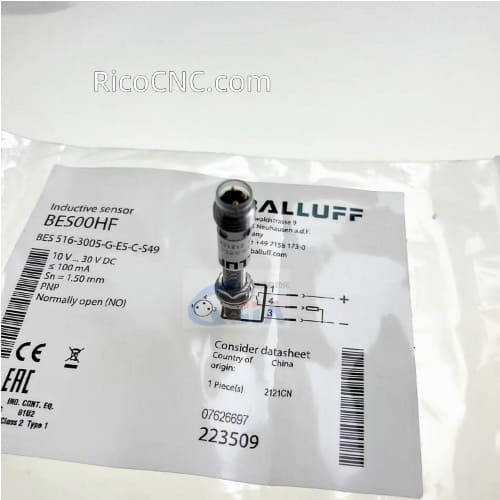

BES 516-3005-G-E5-C-S49 Balluff Inductive Sensors BES00HF Proximity switch

BES 516-3005-G-E5-C-S49 Balluff Inductive Sensors BES00HF Proximity switch M5, 1.5MM Range Flush, PNP NO, M8 3 PIN Connector- 1 x digital output (PNP transistor; 100mA) (NO (Normally Open) operation) - Cylindrical / barrel fully threaded body with M5 threads - 10-30Vdc (12Vdc / 24Vdc nom.) supply voltage - Rated for -13...+158°F / -25...+70°C ambient - IP67 - Stainless steel housing + PBT (Polybutylene Terephthalate) sensing surface - 5000Hz / 5kHz max. switching frequency - Flush mounting - equivalent to BES5163005GE5CS49

Specification of BES 516-3005-G-E5-C-S49 Balluff Inductive Sensors BES00HF Proximity switch

Dimension: Ø 5 x 41 mm

Style Housing: M5x0.5

Installation: for flush mounting

Range: 1.5 mm

Switching output:PNP normally open (NO)

Switching frequency: 5000 Hz

Housing material: Stainless steel

Material sensing surface: PBT

Connection: Connector, M8x1-Male, 3-pin

Operating voltage Ub: 10...30 VDC

Ambient temperature: -25...70 °C

IP rating: IP67
