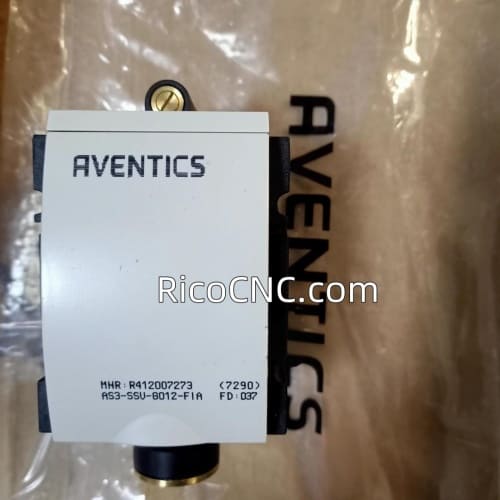

R412007273 AVENTICS Filling Valve Series AS3-SSV AS3-SSV-G012-FIA

AVENTICS - R412007273 - Filling valve, Series AS3-SSV (AS3-SSV-G012-FIA), The AVENTICS Series AS3 is a modular, versatile maintenance unit for universal application. This Series offers compact dimensions, is highly efficient, lightweight and easy-to-use.

Specification of R412007273 AVENTICS Filling Valve Series AS3-SSV AS3-SSV-G012-FIA:

Activation: Pneumatically

Parts: Filling valve

Nominal flow Qn: 4500 l/min

Compressed air connection: G 1/2

Min. working pressure: 2.5 bar

Max. working pressure: 16 bar

Sealing principle: Soft seal

Type: Poppet valve

Can be assembled into blocks: Can be assembled into blocks

Min. ambient temperature: -10 °C

Max. ambient temperature: 50 °C

Medium: Compressed air, Neutral gases

Max. particle size: 40 µm

Housing material: Polyamide

Seal material: Acrylonitrile butadiene rubber

Material, front cover: Acrylonitrile butadiene styrene

Material threaded bushing: Die cast zinc
