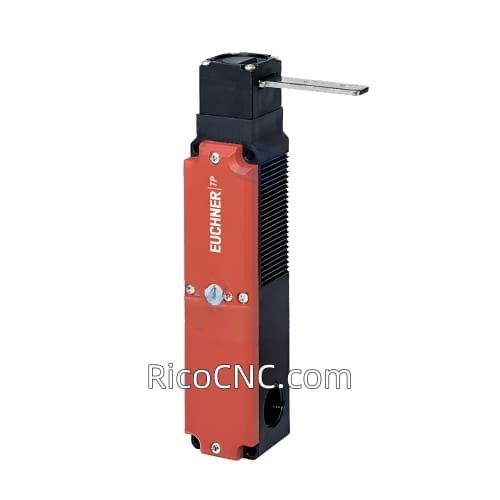

TP3-2131A024M Euchner TP 084142 Electromechanical Safety Switches

TP3-2131A024M Euchner TP 084142 Electromechanical safety switches, Safety switch TP, cable entry M20 x 1.5, contacts for the door position. Safety Switch, Closed Circuit Principle, Guard Locking by Spring Force, Release by Applying Voltage, Horizontal and Vertical of Actuator, TPR Housing Material, 2NC, 1NO+ 1NC.

Specification of TP3-2131A024M Euchner TP 084142 Electromechanical safety switches:

3 x cable entry M20 x 1.5

Contacts for the door position

Auxiliary release

Closed-circuit current principle

Fuse max. 4 A gG

Power consumption: 8 W

Connection cross section: 0.34 ... 1.5 mm²

Rated insulation voltage Ui: 250 V

Rated impulse voltage Uimp: 2.5 kV

Switching voltage: min. at 10 mA: 12 V

Anfahrgeschwindigkeit: max. 20 m/min

Number of door position NC contacts: 1

Number of guard lock monitoring NO contacts: 1

Number of guard lock monitoring positively driven contacts: 2

Extraction force: 20 N

Actuating force: 10 N
