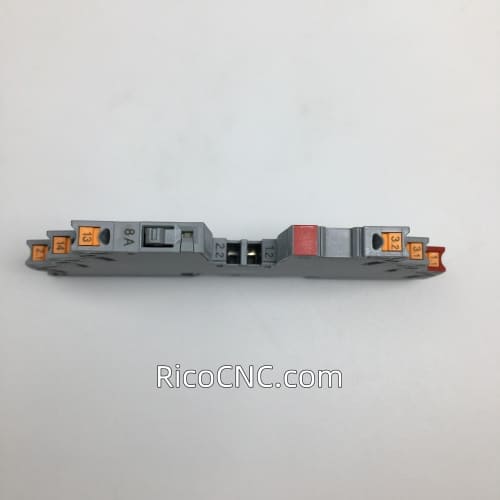

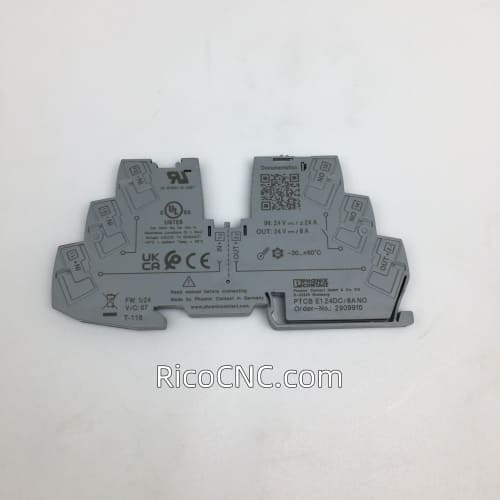

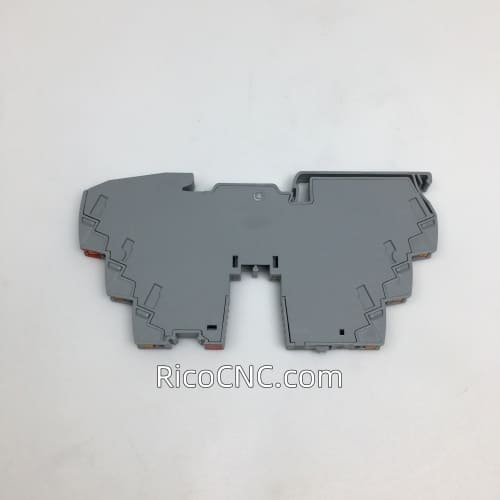

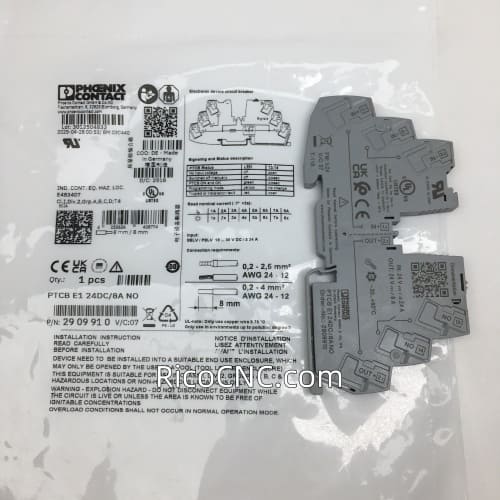

2909910 Phoenix Contact Electronic Equipment Circuit Breaker

2909910 Phoenix Contact Electronic Equipment Circuit Breaker, Single-channel electronic circuit breaker for protecting 24 V DC loads against overload and short-circuit. Potential distribution is easy with CLIPLINE complete terminal block system components. Fixed rated current. For DIN rail mounting.

Features of 2909910 Phoenix Contact Electronic Circuit Breaker:

Individual setup for suitable protection, exactly according to your requirements

More space in the control cabinet: narrowest protection on just 6 mm width

Simple application setup due to bridging option to CLIPLINE complete terminal block system

Specification of 2909910 Phoenix Contact Electronic Circuit Breaker:

Brand: Phoenix Contact

Product Type: Equipment circuit breaker

Product Series: PTCB

type: DIN rail mounting module, single piece

Series: PTCB

Current Rating: 8A

Rated DC Voltage: 24V

Mounting Style: DIN Rail Mount

Operating voltage: 18 V DC ... 30 V DC

Rated voltage: 24 V DC

Nominal operating current I N: 24 A DC (total current inlet); 8 A DC (rated current output)

Rated current (pre-adjusted): 8 A

Rated overvoltage: 0.5 kV

Short-circuit switch capacity: 300 A

Dielectric strength: Max. 35 V DC (load circuit)

fuse: electronic

Connection method: Push-in connection

Stripping length: 8 mm
