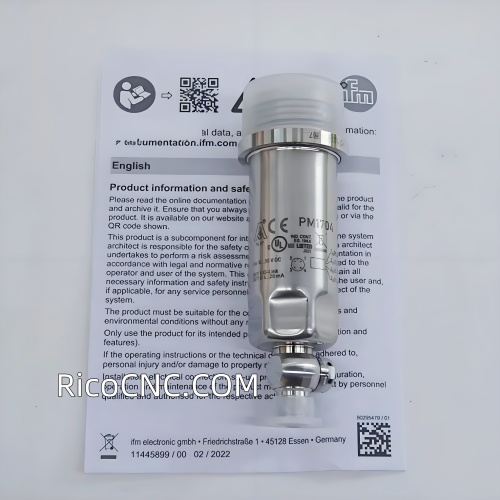

PM1704 IFM Flush pressure sensor PM-010-REA01-E-ZVG/US

ifm efector PM1704 Pressure sensor PM-010-REA01-E-ZVG/US,sanitary flush,-14.5 to 145psi,G1 male,4-20mA,IO-Link,IP69K.

Feature of PM1704 IFM Flush pressure sensor PM-010-REA01-E-ZVG/US

Robust stainless steel housing for use in the food and beverage industry

Hygienic, flush design

Resistant to high-pressure cleaning with aggressive cleaning agents

High temperature resistance and high protection rating

Specifciation of PM1704 IFM Flush pressure sensor PM-010-REA01-E-ZVG/US

Brand: IFM EFECTOR

Manufacturer Part Number: PM1704

Series: PM Series

Number of inputs and outputs: Number of digital outputs: 1; Number of analog outputs: 1

System: gold-plated contacts

Measuring element: ceramic-capacitive pressure measuring cell

Application: flush mountable for the food and beverage industry

Type of pressure: relative pressure; vacuum

Operating voltage[V]: 18...30 DC

Min. insulation resistance[MΩ]: 100; (500 V DC)
