Ball screw nut is belong to a part of the Ball screw assemblies. They are used for transport and positioning tasks with driven screws or with driven nuts.
Rexroth ball screw assemblies have been use in the different fields in the world widely like: Woodworking, Electrical and electronics, Printing and paper industry, Lathe, Cutting operations, Forming operations, Automation and handling, Press brake, Injection molding machines, Food and packaging industries, Medical technology, Textile industry, etc. In this article, we can share with the main type of the Rexroth ball screw nut type:

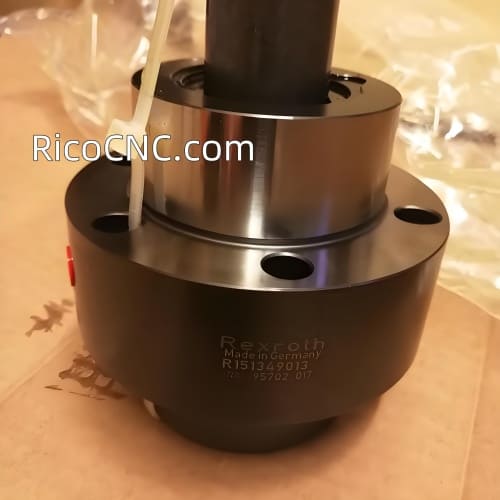

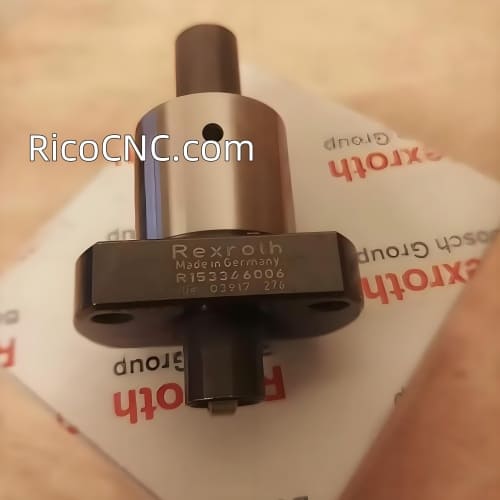

Single Ball screw nut with flange FEM-E-B
With seals, preload class: C0, C00
Except for size 8 x 2.5 and 12 x 5/10:
Preload class C1.
Tolerance grade: T5, T7, T9
Common type:
R1532 100 16
R1532 120 16
R1532 200 16
R1532 220 16
R1532 260 06
R1532 460 06
R1532 490 06
Single Ball screw nut with flange FEM-E-S
With seals
Preload class: C0, C00, C1
Tolerance grade: T5, T7, T9
Common type:
R1532 230 03
R1532 460 23
R1532 490 13
Adjustable-preload single Ball screw nut SEM-E-S
With seals
Adjustable preload
Tolerance grade: T5, T7
Common type:
R1532 230 04
R1532 460 24
R1532 490 14

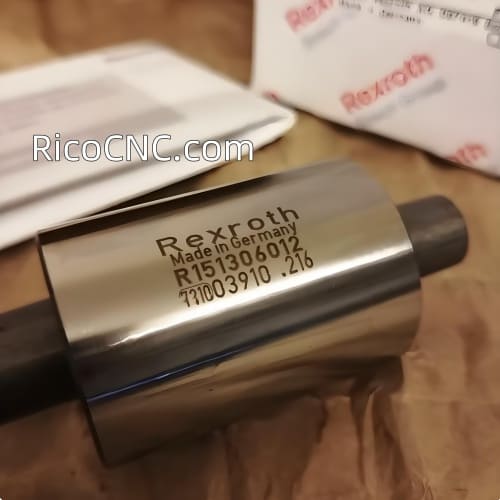

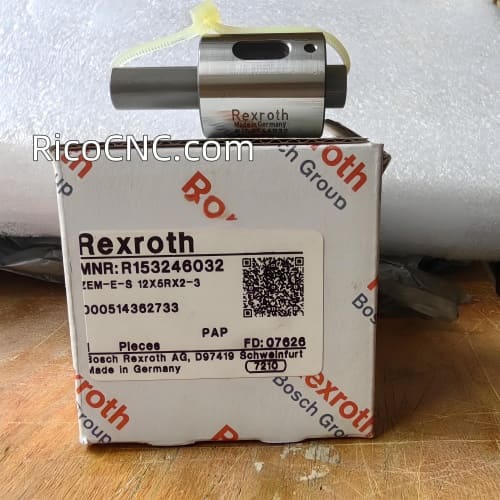

Cylindrical single Ball screw nut ZEM-E-S/ZEM-E-K
With seals
Preload class: C0, C00, C1
Except for size 6 x 1/2, 8 x 1/2, 12 x 2:
Preload class C0, C00
Tolerance grade: T5, T7, T9
Common type:
R1532 102 10
R1532 122 10
R1532 202 10
R1532 222 10
R1532 230 02
R1532 260 02
R1532 422 01
R1532 460 32
R1532 462 25
R1532 490 22
R1532 492 00
Screw-in Ball screw nut ZEV-E-S
With low-friction seal,
preload class: C0, C00, C1
Tolerance grade: T5, T7, T9
Common type:
R2542 230 05
R2542 430 05
R2542 430 15
Except ball screw nut, RicoCNC also supply various Rexroth product, like ball screw, linear bearing block, solenoid valve, motor, cylinder etc. if you need other BOSCH related product, please let me know, thanks.
