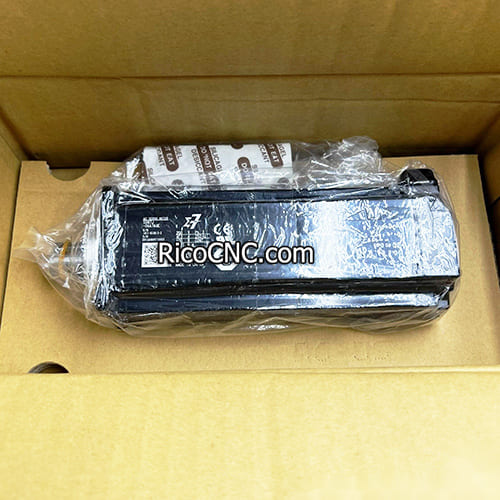

SGM7J-06A7A6E YASKAWA servo motor without gears is one kind of medium inertia, high-speed servo motor, belonging to the Sgm7j series, Σ-7 Servomotors with 600W, 200VAC, 24-bit absolute, straight with key and tap, with oil seal and holding brake( 24VDC).
SGM7J-06A7A6E YASKAWA Servo Motor Features:
24-bit high-resolution encoder installed
Medium inertia, high speed
Downsizing by up to 20%
High efficiency, low heat generation
Flange compatible with Sigma-5
Specification of SGM7J-06A7A6E YASKAWA Servo Motor:
Item | Data |
Height | 74.7 mm |
Width | 60mm |
Depth | 191.5 mm |
Shaft end | Straight with key and tap |
Encoder resolution | 24 bit |
Input power supply | 200 V AC |
Rated output | 0.6 kW |
Encoder type | Absolute |
Options | With oil seal and holding brake (24 VDC) |
Allowable load moment of inertia | 20 Times |
Rated Torque | 1.91 Nm |
Instantaneous max torque | 6.69 Nm |
Rated motor speed | 3000 1/min |
Maximum motor speed | 6000 1/min |
Motor moment of inertia | 0.87 x10⁻⁴ kg·m² |
Flange dimension(LC) | 60 mm |
Flange diameter(LA) | 70 mm |
Shaft end diameter(S) | 14 mm |
Shaft end length(Q) | 30 mm |
We supply below SGM7J series:
SGM7J-08A, SGM7J-06A, SGM7J-04A, SGM7J-02A, SGM7J-C2A, SGM7J-01A, SGM7J-A5A, SGM7J-06A7A6E...
Meanwhile, the below models are our hot-selling servo motors:
SGM7J- 08A7D61, SGM7J- 01A7D6C, SGM7J- 04A6A61, SGM7J-01A6A6, SGM7J-02A6A61, SGM7J-04A7D6C, SGM7J-06A7C6S, SGM7J-08A7C6S, SGM7J-06A7C6E, SGM7J-08A7C6E, SGM7J-06AFA2E, SGM7A-06A7A6E, SGM7A-06A7A6S...
